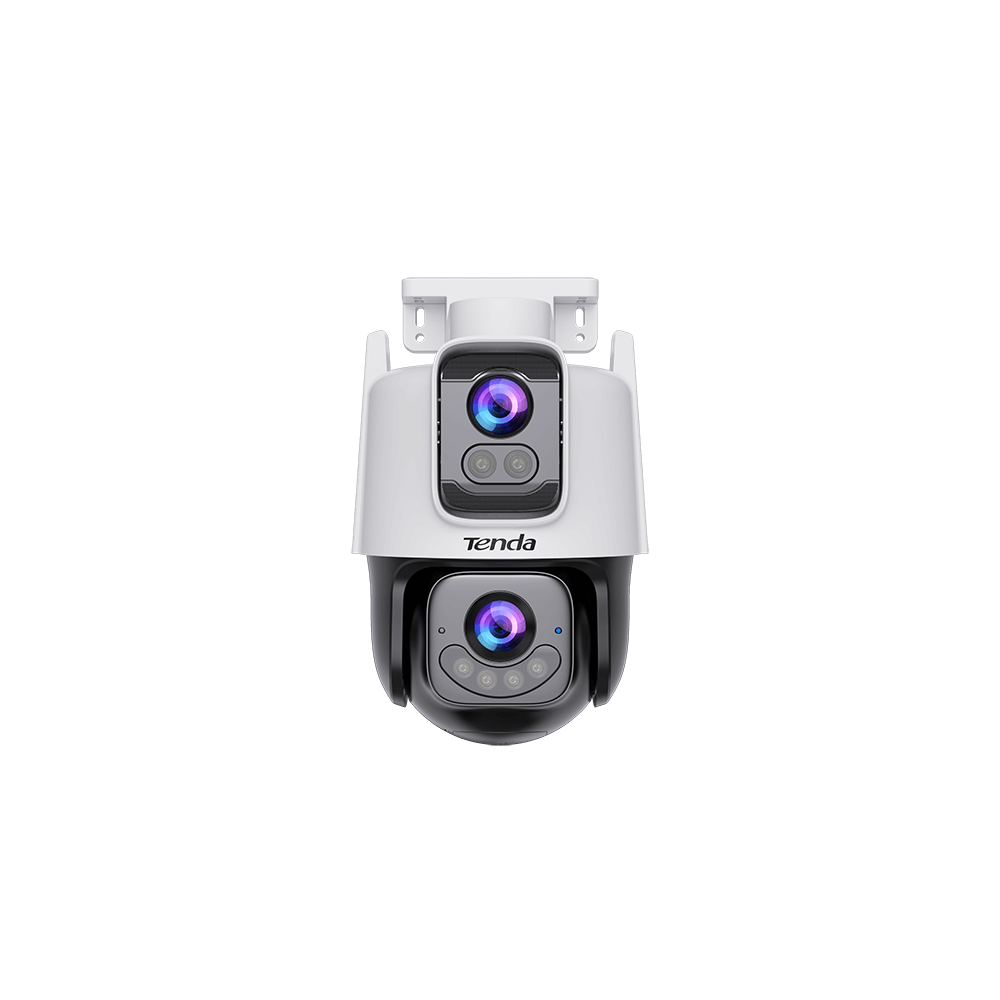

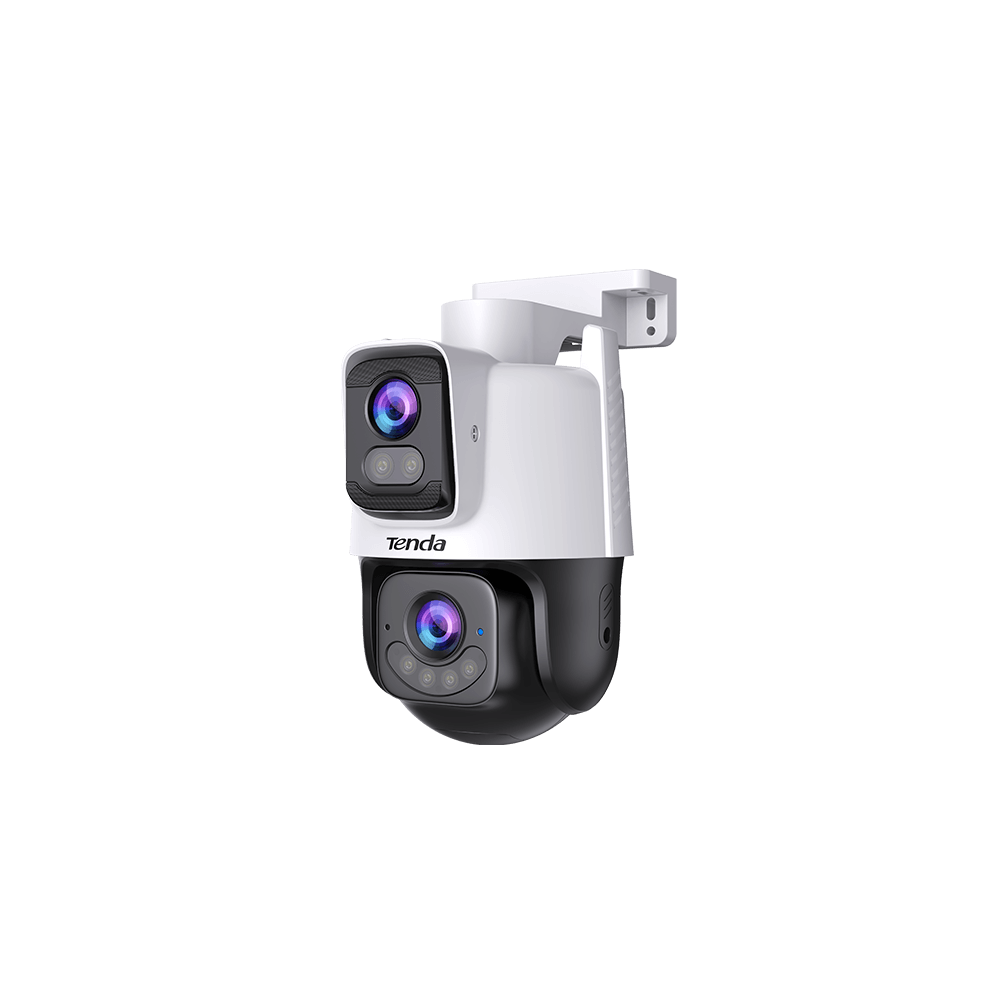

The dual-lens linkage outdoor Wi-Fi pan/tilt camera CH9-WCA, is a high-performance outdoor security camera that integrates 6MP resolution video(3MP+3MP), 360° visual coverage, full-color night vision, full-duplex two-way audio, human detection, vehicle detection, line crossing detection, intrusion detection, dual-lens smart linkage, sound and light alarm functions. The product is mostly used for outdoor protect scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet.
- 3MP + 3MP
- Focal length: 4mm + 6mm
- Fixed lens angle adjustable
- Intrusion detection
- Smart full-color night vision
- Diversified storage: Micro SD, Cloud, NVR
- Two-way audio
- Waterproof and dustproof
- Audio and light alarm
- Line crossing detection
- Dual lens smart detection
- 3D positioning
Call
Description
| Feature | Details |
|---|---|
| Image Sensor | 1/3 Progressive Scan CMOS sensor |
| Day and Night | ICR type |
| Bracket Angle Adjustment | Pan：0°to 260° |
| Focal Length | Fixed Lens：4mm PT Lens：6mm |
| Aperture | Fixed Lens：F1.6 PT Lens：F1.6 |
| FOV | Fixed Lens： Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4° PT Lens： Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4° |
| Supplementary Light | 6 IR Lights, 6 Spotlights |
| Supplementary Light Distance | Up to 30 m/100 ft (depending on environment) |
| IR Wavelength | 850nm |
| Night Vision Mode | Smart Mode, Full Color Mode, Black & White Mode |
| Video Encoding Format | Fixed Lens：H.265, H.264 PT Lens：H.265, H.264 |
| Main Stream Resolution | Fixed Lens：2304 ×1296, 1920 × 1080, 1280 × 720 PT Lens：2304 ×1296, 1920 × 1080, 1280 × 720 |
| Sub Stream Resolution | Fixed Lens：640 × 360 PT Lens：640 × 360 |
| Frame Rate | Fixed Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps PT Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps |
| Bit Rate | Fixed Lens：512kbps -- 4096kbps PT Lens：512kbps -- 4096kbps |
| Bit Rate Control | Fixed Lens：CBR,VBR PT Lens：CBR,VBR |
| Audio Encoding Format | G.711A, G.711U, AAC |
| Audio Sampling Rate | 8 kHz |
| Audio Communication | Two-way Audio, Voice Input |
| Image Enhancement | DWDR, BLC, HLC, 3D DNR |
| Privacy Mask | 4 Areas |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| ONVIF | Support |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets |
| Web Browser | Plug-in free live view: Chrome, Edge, Opera |
| Pan Movement Range | 0°--355° |
| Tilt Movement Range | 0°--90° |
| Preset | 6 |
| Patrol | Panoramic Patrol, Preset Patrol |
| Antenna | Internal antenna |
| Wireless Standard | IEEE 802.11 b/g/n/ax |
| Transmission Rate | Up to 287Mbps |
| Channel Width | 20/40 MHz |
| Modulation | DSSS/OFDM/OFDMA |
| Frequency Band | 2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
| Transmit Power | 2.4GHz: <0.1W(EIRP) |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE |
| Smart Detection | Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection |
| Smart Linkage | Sound&light Alert, Dual-lens Linkage Tracking |
| DIY Audio | 3 Customized Audios |
| Audio Input | Built-in MIC |
| Audio Output | Built-in Speaker |
| Storage | Built-in Micro SD Card Slot, Up to 512 GB |
| Reset Button | Support |
| LED Indicator | Dual Color(red & blue) LED Indicator |
| Power | 12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug |
| Material | Plastic |
| Product Dimension | 203mm x 122mm x 62mm(8.0 ×4.8 × 2.4) |
| Package Dimension | 240mm x 145mm x 193mm(9.4 ×5.7 × 7.6) |
| Product Weight | 527g(1.16lb) |
| With Package Weight | 802g(1.77lb) |
| Protection Level | IP65 |
| Installation Method | Wall Mounting, Ceiling Mounting, Pole Mounting |
| Certification | CE, RoHS, FCC, RCM, UKCA |
| Temperature | Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
| Humidity | Operating Humidity: 10% ~ 95% RH (non-condensing) Storage Humidity: 3% ~ 95% RH (non-condensing) |
| Package Contents | Camera Power Adapter (cord length: 3m) Installation Template Mounting Bracket Mounting Accessories Kit Waterproof Kit Quick Installation Guide Downloads |
