Smart Hybrid Cameras

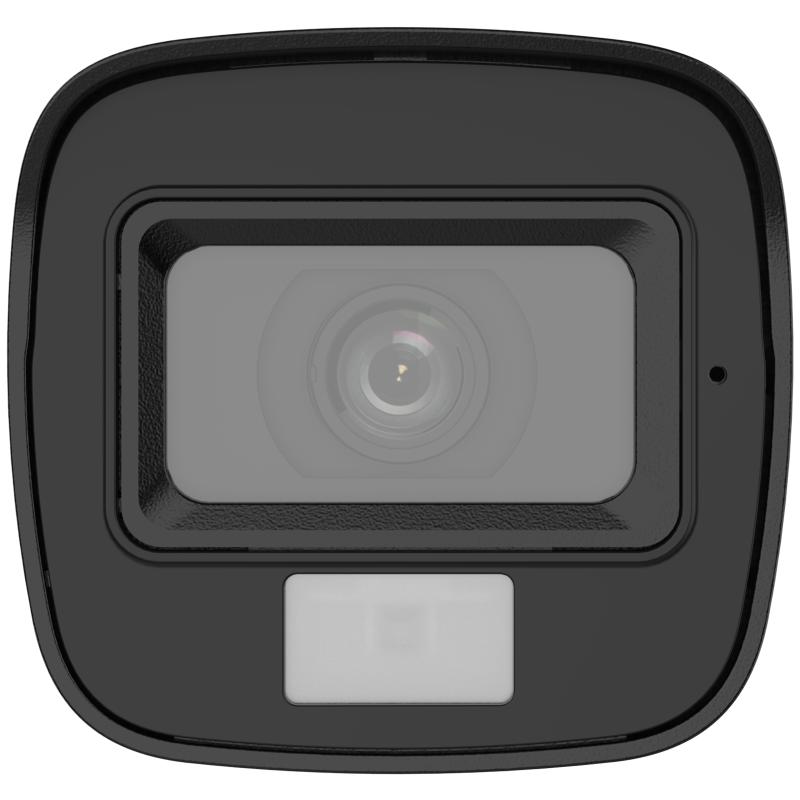

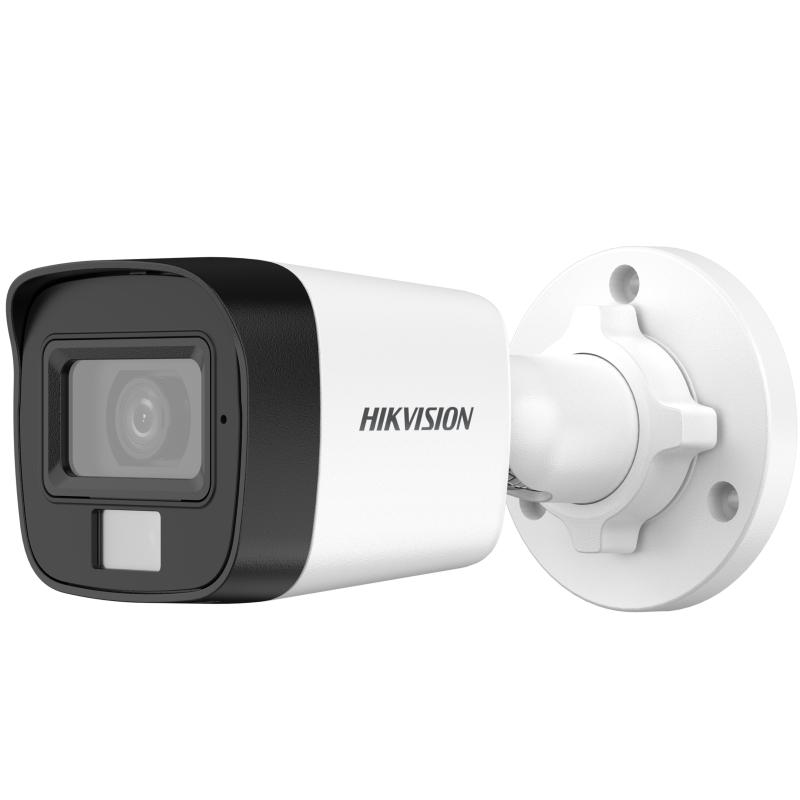

HD-1080P Smart Hybrid Light Bullet with Audio-20M
HIKVISION
Availability: in stock
- 2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920×1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Call
Description
| Camera Specifications | |
|---|---|
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV |
2.8 mm: H-FOV: 101°, V-FOV: 56°, D-FOV: 118° 3.6 mm: H-FOV: 78°, V-FOV: 42°, D-FOV: 92° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range |
IR: Up to 25 m White Light: Up to 20 m |
| Image | |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate |
TVI: 1080P @ 30/25 fps AHD: 1080P @ 30/25 fps CVI: 1080P @ 30/25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Plastic |
| Dimension | 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4" × 2.3") |
| Weight | Approx. 155 g (0.34 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% *Use one adapter per camera recommended. |
| Consumption | Max. 3.3 W |
| Protection | IP67 |
